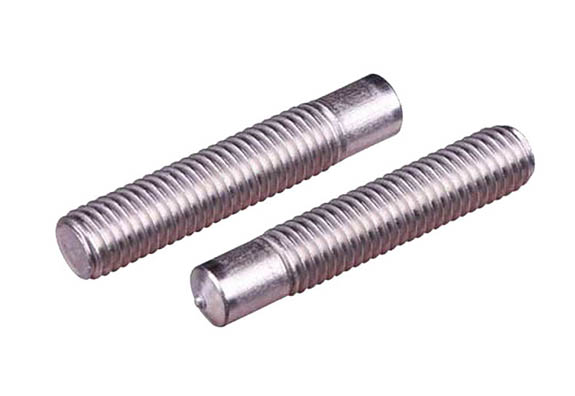

Threaded Stud With Reduced Shaft (Type RD)
The RD-type studs have a reduced weld base diameter. Thus they can produce a smaller weld collar diameter than other DA-type studs. The smaller weld collar allows it to use on smaller clearance holes application. But the strength of the assembly is determined by the reduced weld base.
REQUEST A QUOTE| Dimensions (in mm) | Item Number | Ceramic Ferrule | |||||||
|---|---|---|---|---|---|---|---|---|---|
| D1 | L2 | ymin | D2 | D3* | h* | 4.8 Steel | SS304 | SS316 | |
| M6 | 15-30 | 4 | 4.7 | 7 | 2.5 | 102-06-XXX | 202-06-XXX | 302-06-XXX | RF6 |
| M8 | 20-50 | 4 | 6.2 | 9 | 2.5 | 102-08-XXX | 202-08-XXX | 302-08-XXX | RF8 |
| M10 | 20-50 | 5 | 7.9 | 11.5 | 3 | 102-10-XXX | 202-10-XXX | 302-10-XXX | RF10 |
| M12 | 25-60 | 6 | 9.5 | 13.5 | 4 | 102-12-XXX | 202-12-XXX | 302-12-XXX | RF12 |
| M16 | 30-60 | 7.5 | 13.2 | 18 | 5 | 102-16-XXX | 202-16-XXX | 302-16-XXX | RF16 |
| M20 | 35-70 | 9 | 16.5 | 23 | 6 | 102-20-XXX | 202-20-XXX | 302-20-XXX | RF20 |
