The Xpert for Regulatory Programs
Consumer Safety and RoHS Compliance

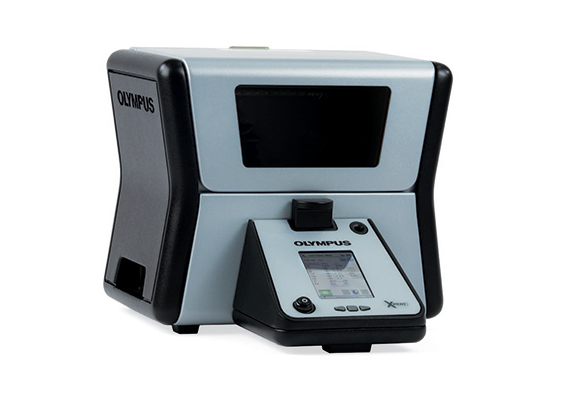

The Xpert for Consumer/RoHS, a convenient, compact & lightweight XRF analyzer for regulatory compliance programs, provides accurate Pass/Fail results within seconds. It is completely independent of an external PC and can be powered by a battery for ease of transport to wherever testing is needed. The Xpert, XP-6500-CC, for Regulatory Programs, is compact and transportable X-ray fluorescence (XRF) analyzer optimized for Consumer Product and RoHS regulatory compliance programs. It has a well-lit, viewable sample chamber, touch-button operation, integrated camera, and a selectable analysis spot size. Action levels for Consumer Products and/or RoHS regulations are preprogrammed for rapid Pass/Fail results. The Xpert for Consumer/RoHS Regulations has a safe and secure closed-beam configuration and operation is completely independent of an external PC. It can be powered by a battery and is lightweight making it easily transportable for wherever and whenever testing is needed.

Comply with Global Regulations

The Xpert for Regulatory Programs is a fast, accurate, and cost-effective XRF analyzer optimized for analysis of lead (Pb), cadmium (Cd), arsenic (As), mercury (Hg), chromium (Cr), and other toxic elements in metals, plastic, and mixed materials. It provides detection limits that are well within typical regulatory limits in most materials. It provides the ability to test not only at retail locations, but also at loading docks and manufacturing sites to screen imported/exported toys, jewelry, clothing, electronics, and other consumer products before they become a problem.

Reliable and Easy-to-Use

Regulators and industry stakeholders depend on XRF analyzers for rapid product and component screening to monitor compliance with CPSIA, RoHS, WEEE, EN71-3, and other regulations. Olympus worked with stakeholders well before the July 2006 EU RoHS Directive went into effect to provide the best possible XRF user experience to meet the impending regulatory requirements. Olympus continues to follow the development of global regulations to ensure its analyzers and technology stay ahead of the regulatory requirements. And, we continue to stay in touch with industrial and regulatory XRF customers to meet and exceed their expectations with technology advancements and value-added features. The operation is simple and straightforward. An object is placed directly on the analysis window or, if small, secured in the sample holder to orient it. The chamber door is closed and the operator presses “Start” to acquire results. The small spot collimator is used for very small objects or for small areas on an object. A digital image of the object can be stored and/or sent along with the analytical results directly to a printer in report format, completely independent of an external PC.

Benefits

• Fast and nondestructive detection of restricted elements
• Accurate with LODs as low as 1 ppm
• Safe, closed-beam XRF system
• Archivable results for regulation compliance

Easy-to-Use

• Operates completely independent of a PC
• Responsive, bright, color touch-screen display
• Large LET-lit sample chamber
• Analysis indicator light with 360° visibility
• Large data storage capacity for test archiving
• USB interface port for high-speed data export, printing, external keyboard, and remote control
• Portable Operate with optional battery for mobile off-site use

Fast, Accurate, Advanced Technology

• Advanced Silicon Drift Detector (SDD) for low LODs
• 4 W X-ray tube, 200 µA current (max), plus optimized beam settings for accurate analysis
• Floating-point processor delivers fast results, with seconds
• Smart sensor that automatically classifies the sample type into Plastic, Alloy, or Mixed for accurate results
• Integrated camera to record analysis images
• Small spot collimation down to 3 mm for small samples or small areas on a sample
