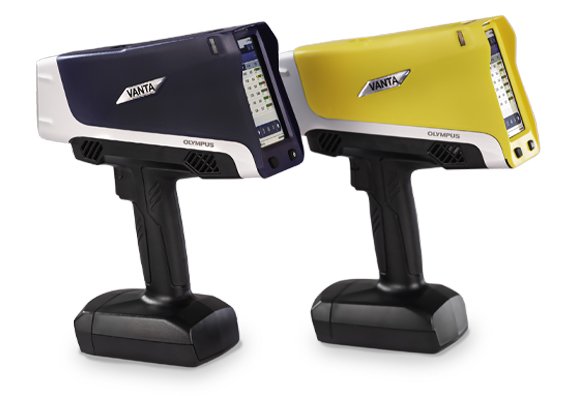

The Vanta Handheld XRF Series:
Fast. Accurate. Easy-to-use.

The Vanta analyzer is our most advanced handheld X-ray fluorescence (XRF) device and provides rapid, accurate element analysis and alloy identification to customers who demand laboratory-quality results in the field. Vanta handheld XRF analyzers are built to be tough. Their rugged and durable design makes them resistant to damage for greater uptime and a lower cost of ownership. With intuitive navigation and configurable software, the Vanta series are easy to use with minimal training for high throughput and a fast return on investment. Featuring innovative and proprietary Axon technology, Vanta analyzers give you accurate results and help boost productivity no matter the environment or working conditions

  • Exceptional durability under extreme conditions.
  • Analytical superiority.
  • Optional Wireless LAN and Bluetooth® for real-time data sharing. Cloud technology enabled.
  • Intuitive user interface.
Recycling: scrap sorting, light elements, steel

Fast XRF Testing

Vanta analyzers give you the same accurate result every time from your first test to your hundredth test. The Vanta Series’ proprietary Axon™ technology uses ultra-low-noise electronics enabling higher X-ray counts per second for fast, accurate, and repeatable results. Axon technology coupled with a new quad-core processor makes Vanta analyzers remarkably responsive, pushing the limits of performance so you get the best results in the least amount of time. Axon technology provides remarkable test-to-test and instrument-to-instrument repeatability, so your first test is the same as your last test no matter what instrument you may use.

Easy-to-Use Handheld XRF Analyzer

Vanta analyzers maximize user throughput and make data archiving easy. Application-specific software features improve user productivity for fast ROI.

  • Intuitive user interface (UI) to quickly navigate the device’s settings and software functions.
  • Customize which features and functions are displayed on the main screen.
  • Data export is simple via a USB flash drive, Wireless LAN, or Bluetooth.
  • Touch screen display that is clear, bright, and readable in any light.
  • Ergonomic buttons and an industrial-grade, push-button joystick make it easy to navigate the UI with gloved hands.
  • Embedded GPS to pair results with precise GPS coordinates for documentation and data mapping.
  • Optional 5-megapixel panoramic camera; combine images with XRF data and GPS coordinates.
  • Streamlined reporting and archiving for exceptional data traceability to the field.
  • Cloud technology enabled.
xrf, hhxrf in metal sorting - quick results - portable xrf

XRF Applications for your Industry

Click an option to see how we can solve your application>

scrap recycling

Scrap Recycling
pmi

PMI
Mining and Geochemistry

Mining and Geochemistry
Regulatory and Safety Screening

Regulatory and Safety Screening
Environmental Assessments

Environmental Assessments
Precious Metals Analysis

Precious Metals Analysis

Vanta Specifications

Dimensions (W x H x D)

 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.)
Weight M series, C series, and L series: 1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery
Element: 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
Excitation Source 4-watt X-ray tube with application-optimized anode material (rhodium (Rh), silver (Ag), or tungsten (W))
M series (Rh W) and C series (Ag): 8–50 kV
C series (Rh W): 8–40 kV
L series (W) and Element (W): 35 kV (2 watts)
Primary Beam Filtration M and C series: 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot
L series and Element: Fixed aluminum filter and no internal collimation
Detector M series: Large-area silicon drift detector
C series: Silicon drift detector
L series and Element: Silicon PIN detector
Power Removable 14.4 V Li-ion battery with hot-swap capability (M, C, and L series only) or
18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Display 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
Operating Environment Temperature range for the M, C, and L series: −10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan);
Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F)
Humidity: 10% to 90% relative humidity non-condensing
Drop Test Military Standard 810-G 4-foot (1.3 M) drop test
IP Rating and Detector Shutter M series, and Element IP54: dust protected and protected against water splashing from all directions
C and L series IP55: dust protected and protected against water jets from all directions
M and C series: Solid detector shutter to help prevent detector damage
Pressure Correction M and C series: Built-in barometer for automatic altitude and air density correction
GPS M, C, and L series: Embedded GPS / GLONASS receiver
Operating System Linux®
Cloud enabled with user fleet manager capability
Data Storage microSD™ slot with removable 1 GB industrial SD card included
USB (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.
(1) USB 2.0 type mini-B port for connection to computer.
Wireless LAN Supports 802.11 b/g/n (2.4 GHz) cable optional USB adaptor
Bluetooth Supports Bluetooth® with an optional USB adaptor
Aiming Camera Full VGA CMOS camera (Optional)
Panorama Camera 5-megapixel CMOS camera with autofocus lens (Optional on M, C, and L series)
Warranty M, C, and L series: Three-year warranty; Element: One-year warranty
Selected Optional Accessories M, C, and L series: Field Stand, Soil Foot, Holster, Work Station, Weld Mask, Hot Heel, Probe Shield, and VLW Collimation Mask (L series only)
Element: Field Stand, Soil Foot, and Holster
