FOCUS PX / PC / SDK

FOCUS PX / PC / SDK

Phased Array Instrumentation Designed for Demanding Inspections


Olympus offers a complete advanced phased array integration solution that meets the requirements of your most demanding customers. The solution includes the FOCUS PX, a powerful and scalable acquisition unit; FocusPC, a powerful data acquisition and analysis software program; and three software development kits (SDK), FocusControl, FocusData, and OpenView SDK, to customize your software interface based on your application and control FocusPC for a fully automated inspection solution.

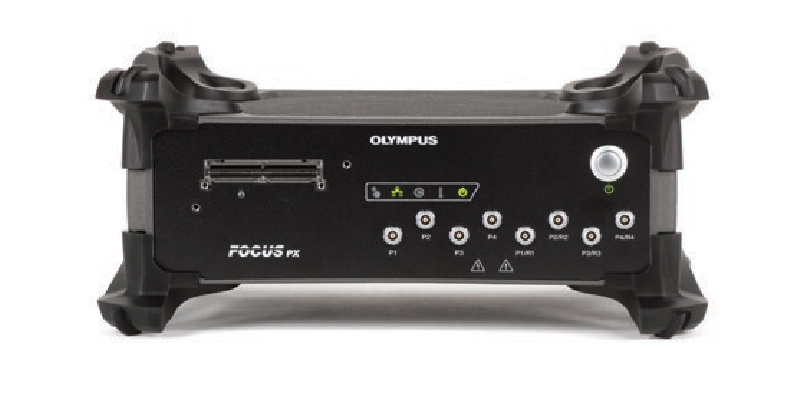

FOCUS PX Instrument


Excellent Signal Quality
The FOCUS PX provides excellent phased array signal quality using the latest Olympus technology, resulting in a significantly improved signal-to-noise ratio.
Up to

12 dB

SNR improvements
Up to

4

dedicated UT channels




Scalable and Powerful

The FOCUS PX is equipped with the latest phased array technology to deliver significant performance enhancements and faster inspection speed in highly demanding applications. Up to four FOCUS PX units can be used in parallel, offering a significant increase in inspection speed and advanced multiprobe configurations.


Up to

4

FOCUS PX in parallel

Up to

30 MB/s

data throughput

Fast Programming

The optimized FOCUS PX communication process significantly reduces programming time, resulting in minimized cycle time and improved operator experience.


Rugged

The FOCUS PX is a rugged unit that is designed for integration in harsh production environments. Designed for IP65 rating, the casing has multiple fins for optimized heat dissipation.


Up to

40 °C

operating temperature

Rated

IP65

Easy Integration

The FOCUS PX bumpers can be easily removed to access four screw holes for mounting the unit directly onto a scanner or inspection system

Integration
Simple Cabling

Multiple FOCUS PX units can be synchronized with each other through a simple cable configuration. This allows all I/O signals to be received by one unit, reducing cabling and greatly simplifying the overall integration.

Easy Mounting
Easy Mounting

Four screw holes are available for mounting the unit directly onto any inspection scanner.
