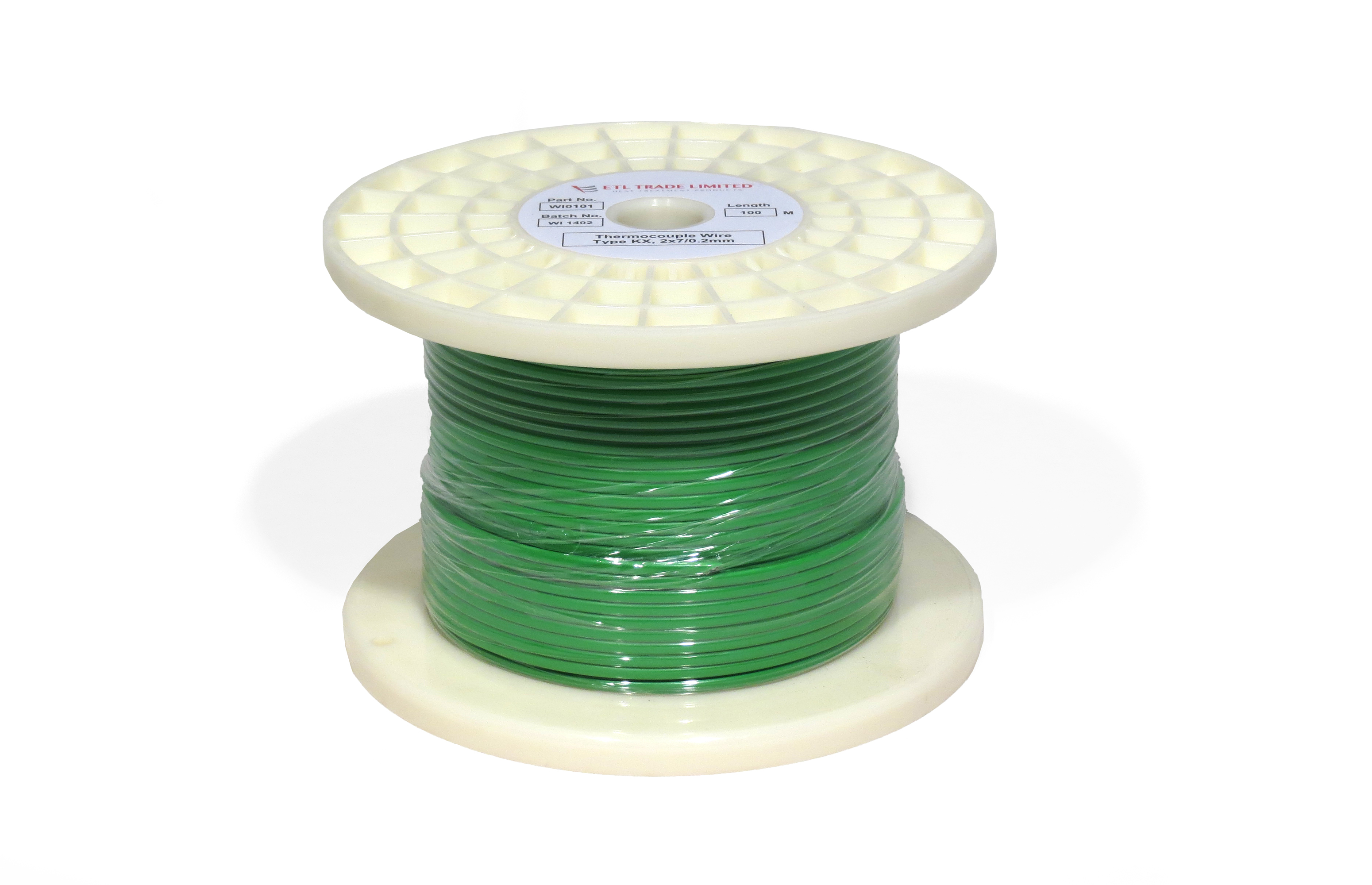

The best known and dominant thermocouple wire is the Type K - Grade A, this low temperature thermocouple wire provides accuracy within ±1.5°C. With a maximum working temperature of 105°C, the laid flat heat-resistant PVC covered conductors have an overall sheath of PVC (-25 to 105°C). Each roll has 100m length of wire.

Specifications:

• Dimensions of Roll: 135 H x 200 W x 200 D mm
• Length of Wire: 100m
• Wire Dimensions: 2.6mm H x 4mm D
• Weight: 2.2kg
• Materials: 2 sets of 7/0.2mm
• Maximum Working Temperature: 105°C
• Standards: Conforms with BS4937 Part 30, ASTM E230-1993, ISA MC96.1-1982, IEC 584-3:1989. mod, IEC 584-2:1982
• Colour: Outer Jacket is Green, Inner Jacket is Green (-) and White (+)
