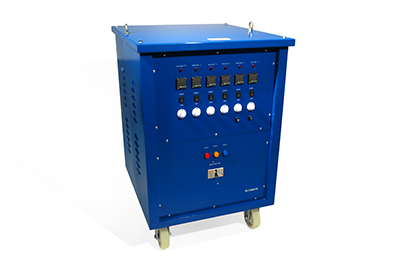

The 70kVA heat treatment unit provides power to electrical resistance heaters (at 65v) which is split into 6 individual heating circuits to enable the individual temperature control of each circuit. There are 2 operational methods of heat control; an external programmer for all channels, and individual proportional energy regulators. Sufficient for 4 flexible ceramic pad heaters per channel, this mobile unit is suitable for both site or fabrication shop use.

Specifications:

• Dimensions: 1200 H x 760 W x 845 D mm
• Weight: 400kg
• Primary: 415v
• Secondary: 65v 360A per phase
• Cooling: Natural Air Cooling
• Insulation: Class H
• Protection: MCB shunt trip
• Contactors: 110v single pole, 180A
• Manual set: 6 x energy regulators
• Remote: 2 x 110v Aux sockets
• Rating: 100% to 35°C
