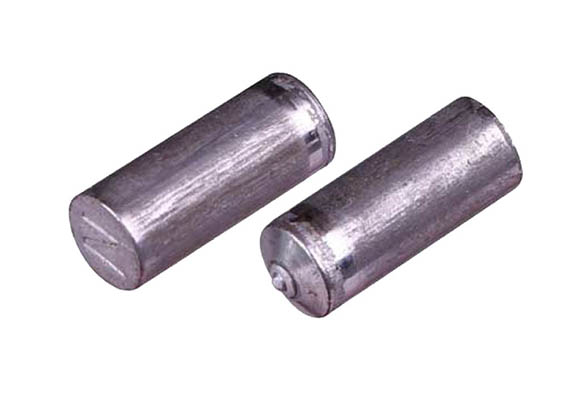

Unthreaded Stud (Type UD)
The UD-type studs are designed to be used in the power generation industry, forging applications and locator pins, stops, etc.
REQUEST A QUOTE| Dimensions (in mm) | Item Number | Ceramic Ferrule | |||||
|---|---|---|---|---|---|---|---|
| D1 | L2 | D3* | h* | 4.8 Steel | SS304 | SS316 | |
| 6 | 15-30 | 8.5 | 4 | 104-06-XXX | 204-06-XXX | 304-06-XXX | UF6 |
| 8 | 20-50 | 11 | 4 | 104-08-XXX | 204-08-XXX | 304-08-XXX | UF8 |
| 10 | 20-50 | 13 | 4 | 104-10-XXX | 204-10-XXX | 304-10-XXX | UF10 |
| 12 | 25-60 | 16 | 5 | 104-12-XXX | 204-12-XXX | 304-12-XXX | UF12 |
| 14.6 | 30-60 | 18.5 | 6 | 104-14.6-XXX | 204-14.6-XXX | 304-14.6-XXX | PF16 |
| 16 | 35-100 | 21 | 7 | 104-16-XXX | 204-16-XXX | 304-16-XXX | UF16 |
