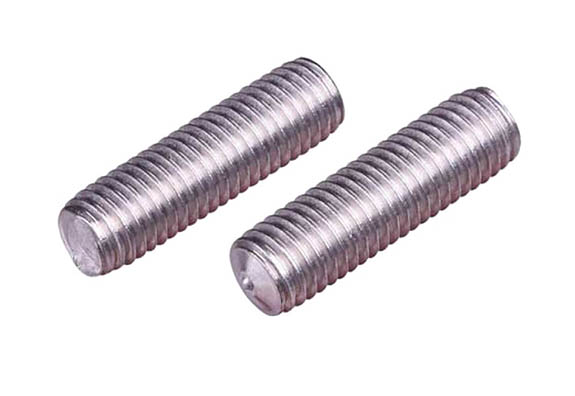

Full Threaded Stud (Type FD)
The FD-type studs are threaded almost to the top of the welding tip. Thus after welding the studs are threaded up to the wind collar, they are recommended to be used whenever full fastener length is needed.
REQUEST A QUOTE| Dimensions (in mm) | Item Number | Ceramic Ferrule | |||||
|---|---|---|---|---|---|---|---|
| D1 | L2 | D3* | h* | 4.8 Steel | SS304 | SS316 | |
| M6 | 15-30 | 8.5 | 4 | 103-06-XXX | 203-06-XXX | 303-06-XXX | RF6 |
| M8 | 20-50 | 11 | 4 | 103-08-XXX | 203-08-XXX | 303-08-XXX | RF8 |
| M10 | 20-50 | 13 | 4 | 103-10-XXX | 203-10-XXX | 303-10-XXX | RF10 |
| M12 | 25-60 | 16 | 5 | 103-12-XXX | 203-12-XXX | 303-12-XXX | RF12 |
| M16 | 30-60 | 21 | 7 | 103-16-XXX | 203-16-XXX | 303-16-XXX | RF16 |
| M20 | 35-70 | 21 | 7 | 103-20-XXX | 203-20-XXX | 303-20-XXX | RF20 |
