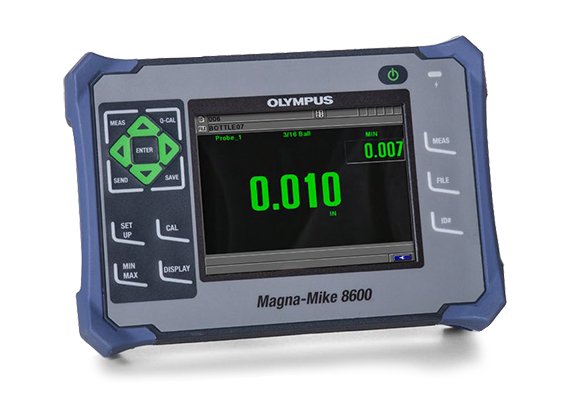

The Magna-Mike® 8600 is a portable thickness gauge that uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials. Operation of the Magna-Mike is very simple. Measurements are made when its magnetic probe is held or scanned on one side of the test material and a small target ball (or disk or wire) is placed on the opposite side or dropped inside a container. The probe's Hall Effect sensor measures the distance between the probe tip and target ball. The measurements are instantly displayed on the large color thickness display as an easy-to-read digital thickness reading.

New Features

  • Three new durable probe designs:
    --Straight, Right Angle, and Low-profile Articulating
  • Replaceable Wear Caps
    --Standard, Chisel tip, and Extended Wear (for 86PR-1 and 86PR-2 only)
  • Expanded target selection
    --3/16 and 1/4 in. magnetic target balls
    --0.045 in. (1.14 mm) 0.026 in. (0.66 mm) diameter wire target
  • Expanded thickness range up to 25.4 mm (1.00 in.)
  • Larger Color VGA display
  • RS-232, USB and VGA outputs
  • Fast Measurement update rate 60 Hz
  • Expanded alphanumeric data logger
  • Save and Recall stored calibration files
  • Ability to export file to MicroSD card in .txt and CSV formats
  • New accessory kits (Calibration kits)
    --Standard up to 9.1 mm (0.360 in.)
    --Extended range up to 25.4 mm (1 in.)
    --Disk kit
    --Wire target kit
    --Low-profile probe kit
