45MG Ultrasonic Thickness Gauge:
Simple Operation, Rugged, and Reliable


The 45MG is an advanced ultrasonic thickness gauge packed with standard measurement features and software options. This unique instrument is compatible with the complete range of Olympus dual element and single element thickness gauge transducers, making this innovative instrument an all-in-one solution for virtually every thickness gauge application.

Standard Features

In its basic configuration, the 45MG is a simple and straightforward gauge that requires minimal operator training to tackle the most common thickness gauging applications. With additional optional software options and transducers, however, the 45MG can become significantly more advanced and take on applications well beyond that of a typical entry-level gauge. Furthermore, most options are available individually at the time of purchase or can be added in the future as your needs change

  • Compatible with full line of Olympus dual element transducers for thickness measurements on internally corroded metals
  • Min./Max. mode
  • Two Alarm modes
  • Differential mode
  • Time-based B-scan
  • Reduction Rate
  • Gain Adjust (standard, high, and low)
  • Password instrument lock

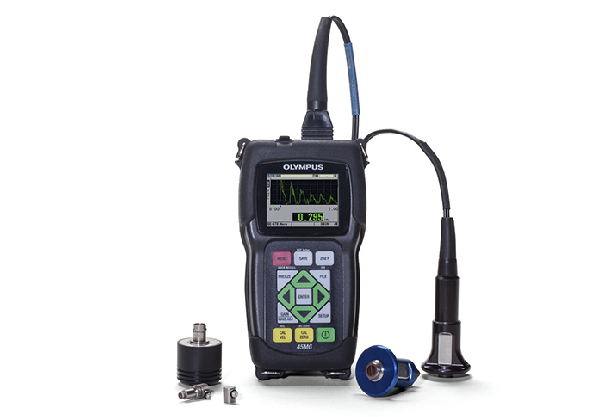

45MG Ultrasonic Thickness Gauge
45MG with optional protective rubber boot and stand

Built for Tough Environments

  • Rugged, designed for IP67
  • Explosive Atmosphere: Safe operation as defined by Class I, Division 2, Group D, as found in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL-STD-810G, Method 511.4, Procedure I.
  • Shock tested using MIL-STD-810G, Method 516.5, Procedure I, 6 cycles each axis, 15 g, 11 msec Half sine.
  • Vibration tested using MIL-STD-810G, Method 514.5, Procedure I, Annex C, Fig. 6, general exposure: 1 hour each axis.
  • Wide operating temperature range
  • Optional protective rubber boot with gauge stand

Designed for Easy Operation

  • Simple keypad for right hand/left hand operation
  • Easy operator interface with direct access to most functions
  • Internal and removable microSD memory card storage
  • USB communication port
  • Optional alphanumeric data logger with 475,000 thickness readings or 20,000 waveforms
  • Default/Custom single element transducer setups (optional)
  • Password protected instrument lock
  • Color transflective QVGA display with indoor and outdoor color settings for superior clarity
.

Optional Features

From a simple corrosion gauge to a multi-purpose precision thickness gauge with only a few keystrokes. The 45MG offers five code-activated software options that make it one of the most versatile thickness gauges in the industry.

  • Echo-to-Echo / THRU-COAT®:Using Echo-to-Echo, the true metal thickness is displayed and the thickness of the coating layer will be ignored. THRU-COAT measures metal and nonmetallic coating thicknesses, each adjusted for their correct sound velocities. There is no need to remove paint or coatings fromsurfaces.
  • Single Element:For very precise thickness measurements on many materials, including metals, plastics, composites, glass, and ceramics. Compatible with single element Microscan transducers ranging from 2.25 MHz to 30 MHz.
  • Single Element High Penetration:For thickness measurement on thick or highly attenuating materials such as fiberglass or cast metals. Compatible with single element Microscan transducers ranging from 0.5 MHz to 30 MHz. Included is the Single Element option.
  • Data Logger:The 45MG has a full-featured internal bidirectional alphanumeric data logger that is designed to easily store and transfer thickness readings and waveform data. Includes GageView™ interface program, a Windows-based application.
  • Live A-scan with Waveform Adjust:This optional Live A-scan mode allows users to view the ultrasound waveform (or A-scan) directly on the gauge's display, verify the thickness measurement, and make manual adjustments to gain and blanking settings to maximize measurement performance in challenging applications. This helpful option features Manual Gain Adjust, Extended Blanking, First Echo Blank, Range, and Delay.
indoor a-scan display

Indoor display setting, optional A-scan mode

Outdoor a-scan

Outdoor display setting, optional A-scan mode>
